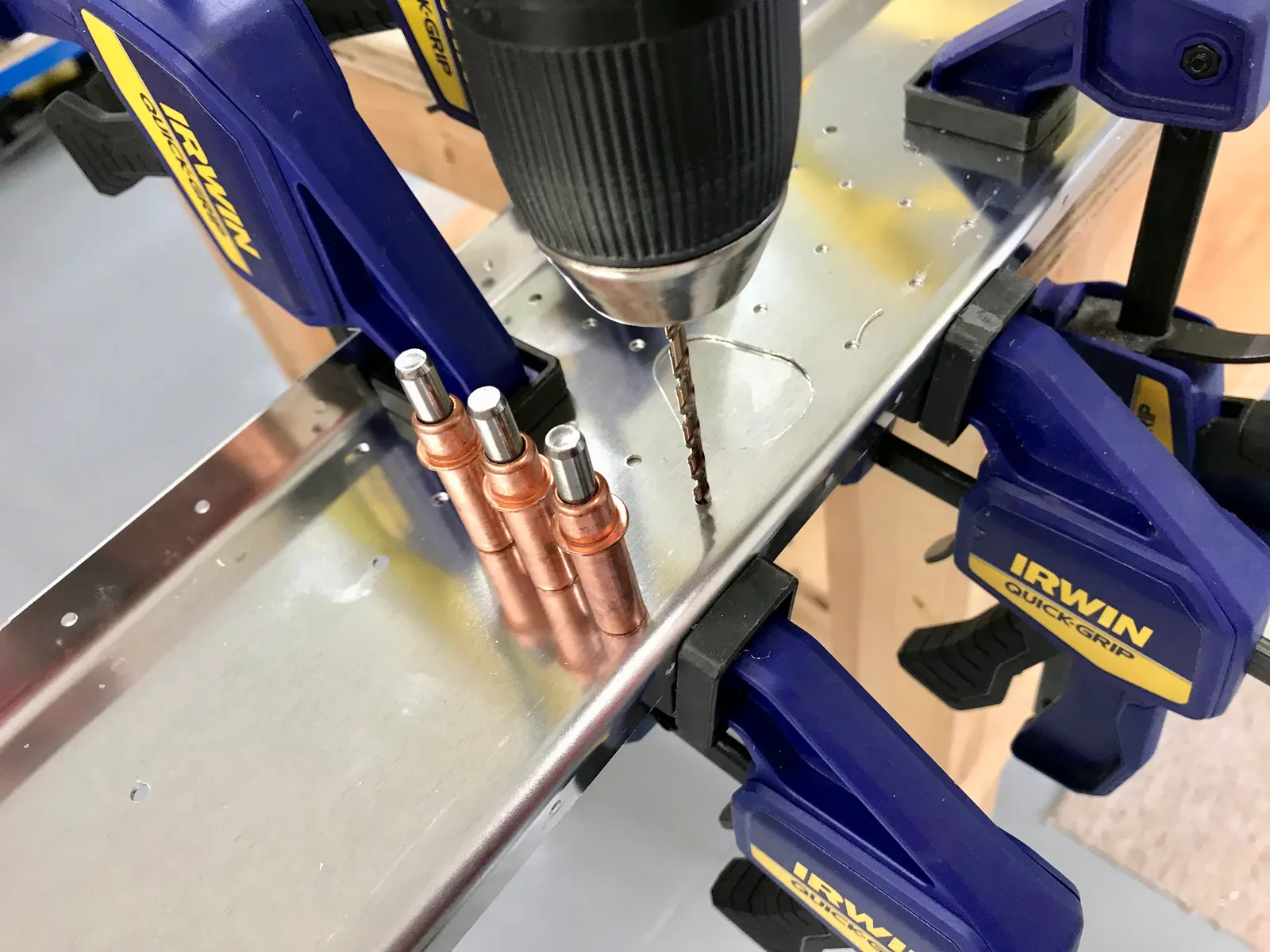

The doubler plates need to be clamped securely in the correct position on the rear spar and then match drilled.

I used my cordless drill and the drill reflection to maintain perpendicular holes.

fullsizeoutput_33e9

Pushrod Holes

Two of the doublers cover the aileron pushrod holes in the rear spar, so these need to be cut out in the doublers.

fullsizeoutput_33fd

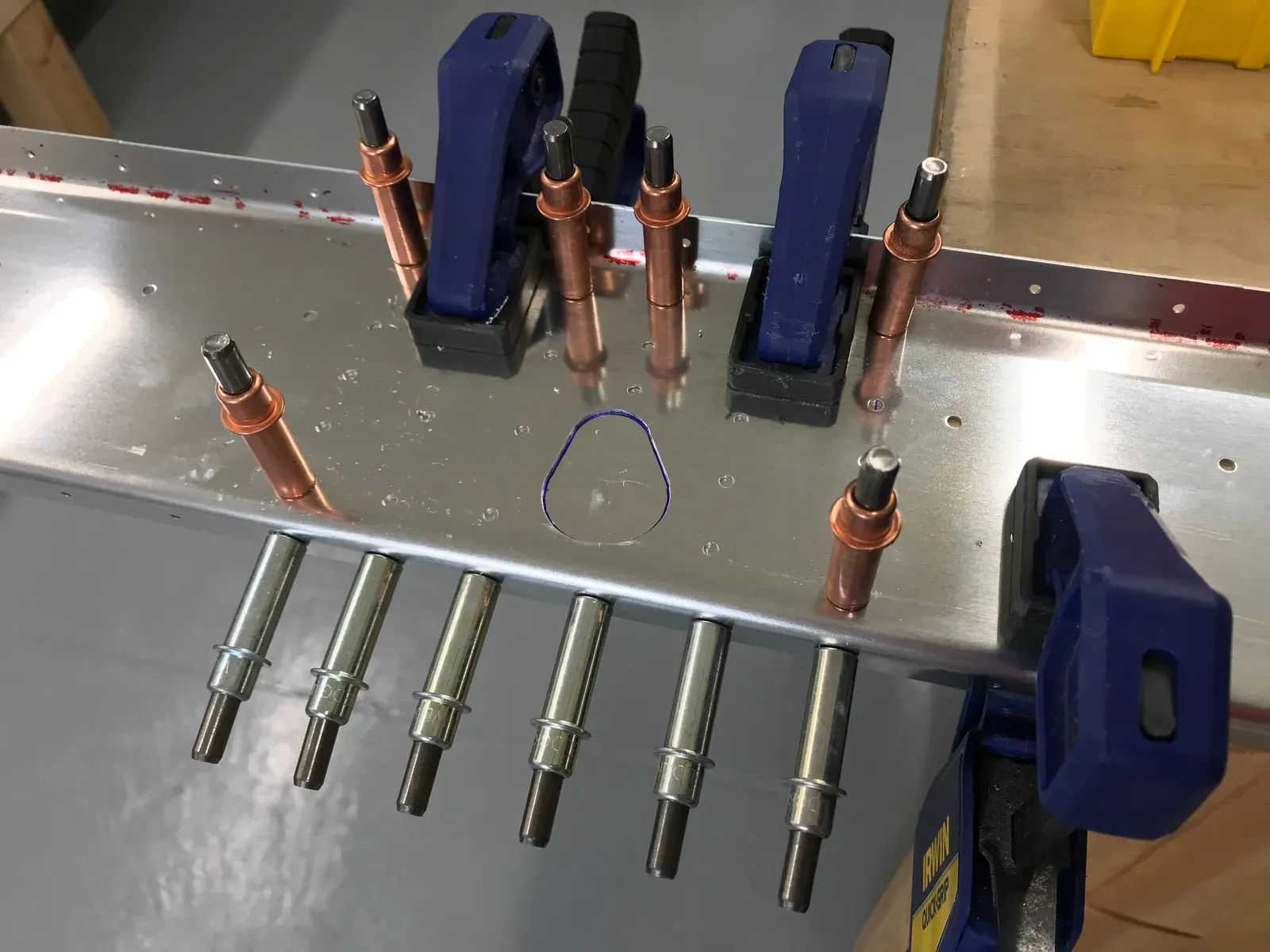

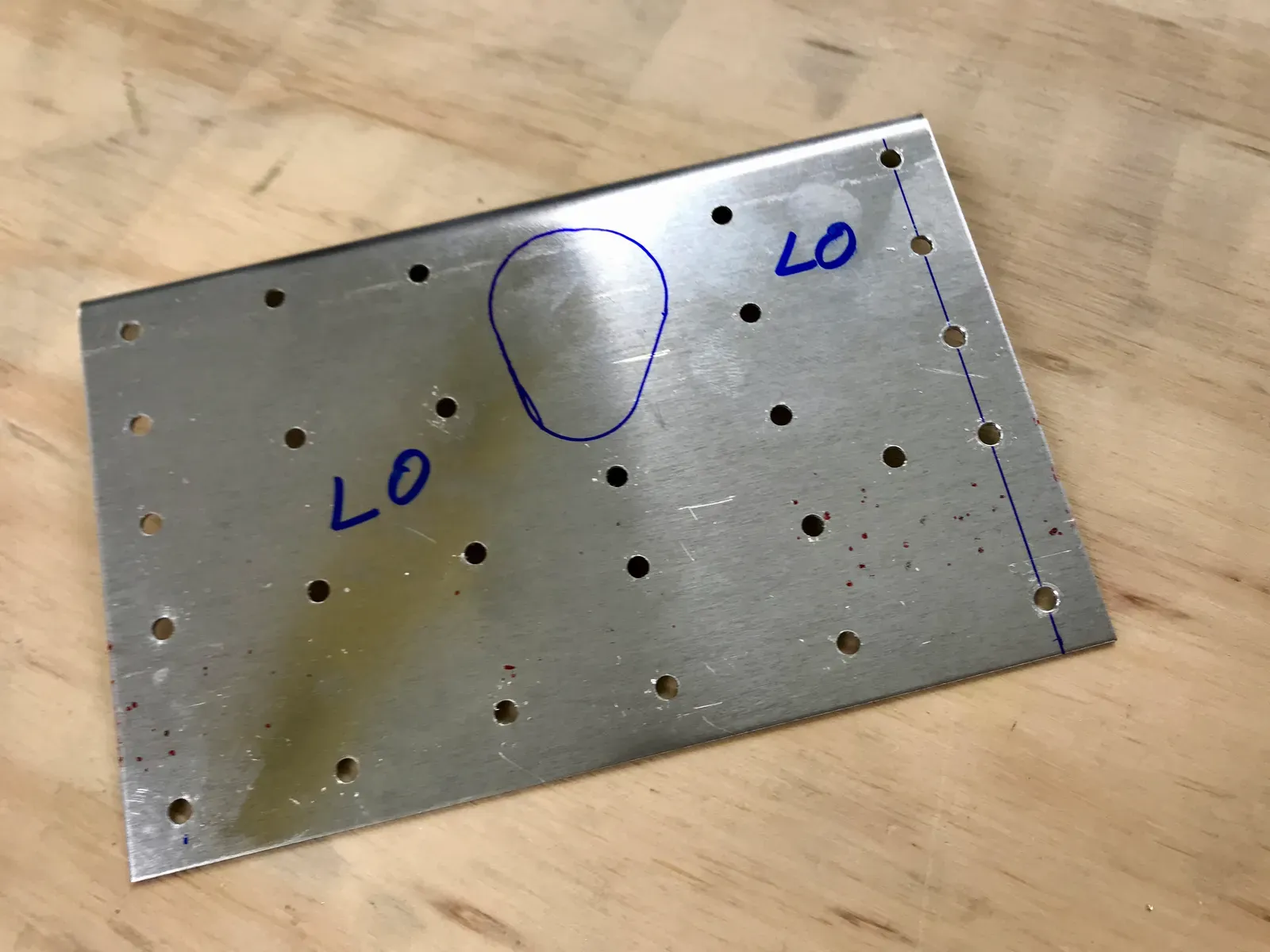

Hole position marked.

fullsizeoutput_33e7

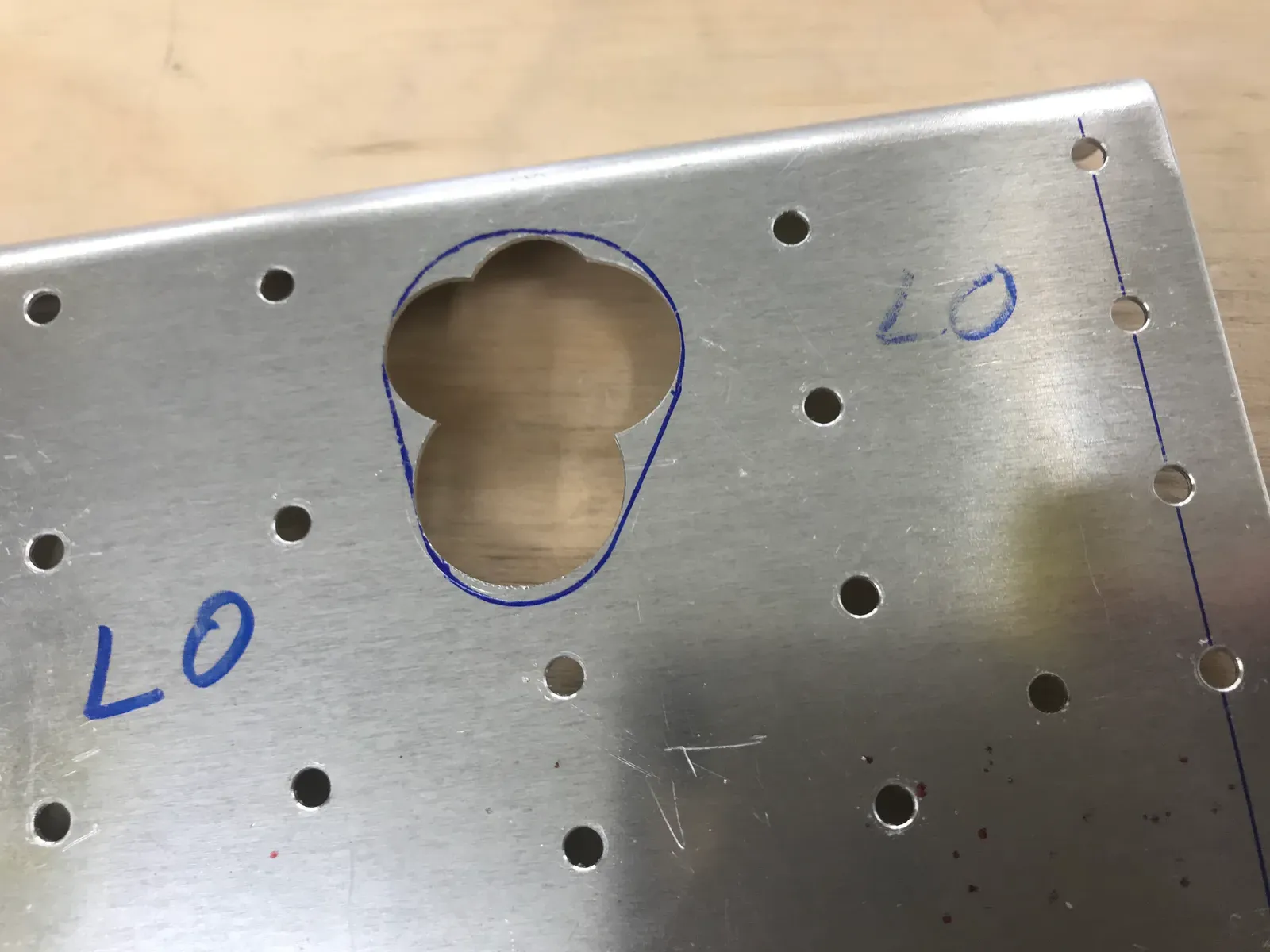

I used a step drill to remove the bulk of the material, and finished off by filing.

fullsizeoutput_33e2

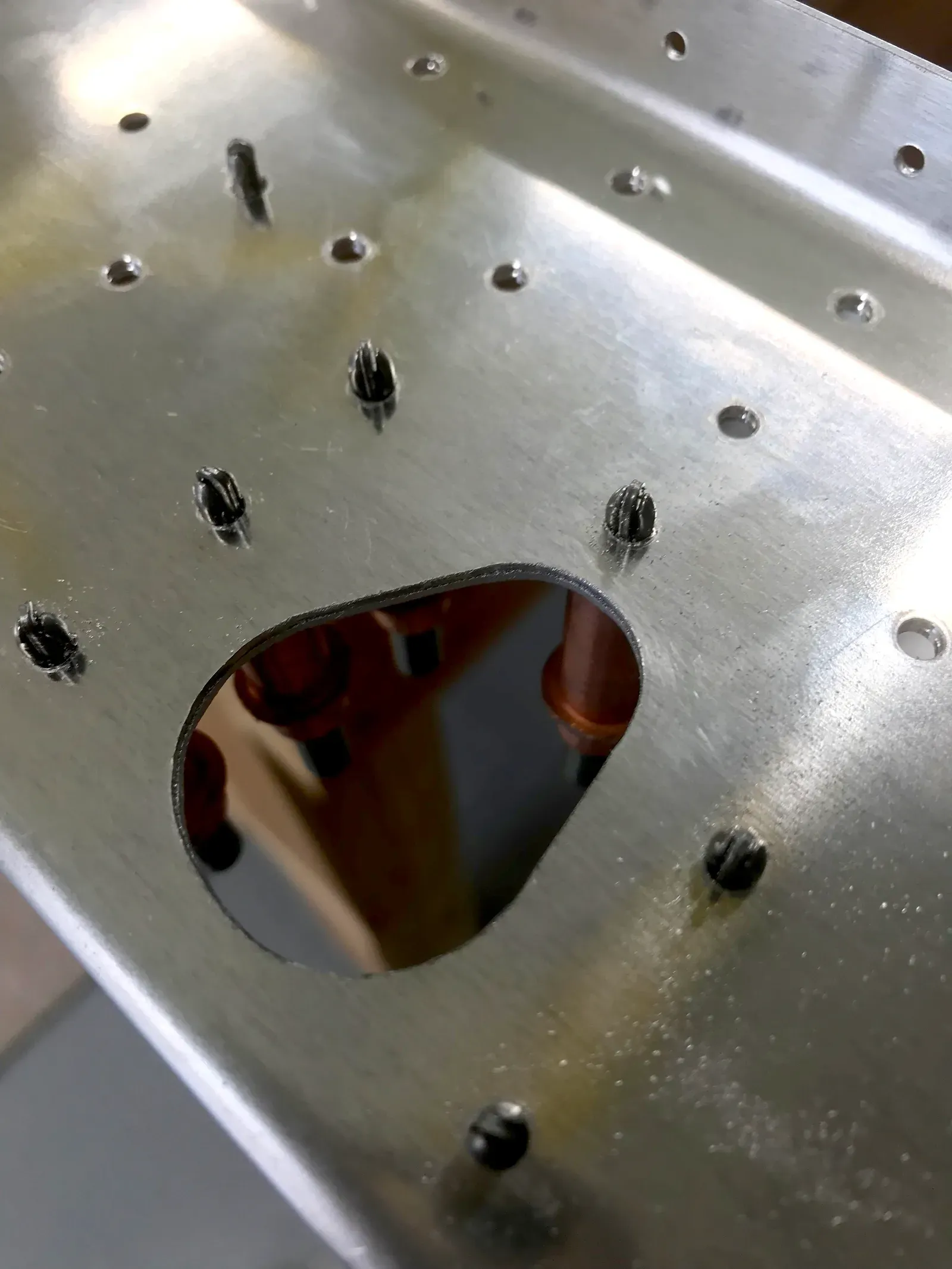

Then I clecoed the doublers back into position on the spar and gently filed the doubler hole to match the spar hole exactly.

fullsizeoutput_33e0
